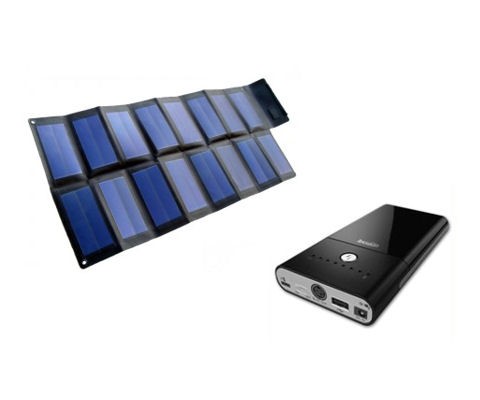

This kit consists of a 25W foldable solar panel (the MMP16) and a portable universal battery (the MP3450). Together they provide a go-anywhere laptop charger kit that will keep you going on the road, off on a hike or just outdoors by the pool!

We recommend that you initially charge the battery with its mains power supply and then use the folding solar panel to top up the charge.

MMP16-25W Foldable solar panel
The MMP16-25W foldable solar panel is the solution for portable solar power for all types of outdoor needs. The foldable solar panel is ideal for hiking, camping, sporting events, on campus and at the beach. The foldable solar panel provides an excellent choice for excursions that require lightweight, durable portable power.

The MMP16 will charge the battery in this kit via the dc input port.

Features:
- Extremely portable
- Flexible solar cells
- Tough rip-stop nylon
- Grommets for mounting or securing
- 12V VDC rates
- Weatherproof and UV resistant
- Built-in reserve current diode protection
- Built-in voltage cap
- Weighs 780g
- Dimensions (mm): 215 x 95 x 50 (closed), 1040 x 430 x 5 (unfolded).
- SAE 2-prong water-resistant trailer plug connections
- Continues to power under cloudy/overcast skies
- 12V female cigarette lighter adapter included
- 5V USB cigarette lighter adapter included
- a pack of different dc power connectors for most mobile phones.

Specifications:
- Open circuit Voltage: 17,3V
- Short circuit Current: 1,48A
- Max. Power: 25,6W
- Nominal Operating Voltage: 12V
- Peak Current: 1,2A
- Peak Power: 14,4W
- Size (folded): 215 x 95 x 50 mm
- Size (open): 1040 x 430 mm
- Weight: 780g
- Warranty: 2 years

MP3450
MP3450 provides up to 19V to power and/or charge laptops and other devices like camcorders, and include a bonus USB output port to simultaneously charge other small portable devices. Selecting the right voltage for a personal device is done quickly and easily. Because the MP3450 automatically resets to the lowest setting after a device is connected, you will never overcharge your portable device.

- Universal to power and charge hundreds of portable devices
- Includes adapters for connection to most major brands of portable devices
- MP3450 voltage lock holds current voltage setting
- MP3450 extends to double the capacity
- MP3450 powers and charges your laptop and portable device at the same time via a bonus USB port
- Visual indicators identify exact power level
- Small and lightweight so it’s comfortable to carry
Designed with high degree of safety
- Multi-layer protection circuitry to help prevent over-charging, over-discharging, over-current, short circuit
- Flame-retardant plastics that exceed industry requirements
- Design that minimizes heat

Extra Power:
Laptop computers : 3.5 hrs
Portable DVD players : 6 hrs
Camcorders : 12 hrs
Portable media center : 12 hrs video / 30 hrs audio
MP3 players : 42 hrs
Portable CD players : 96 hrs
PDAs : 14 hrs
Mobile phones : 60 hrs talk time

Note: Hours shown are approximate and will vary depending on connected device. Extra run time for 17" laptops will be lower. MP3450 will power virtually all laptops for which an adapter is available, and that draw up to 90W output power from the device power adapter. Each battery contains 4 grams of lithium, which is less than the FAA maximum of 8 grams for carry-on luggage.

Tech Specs:
Size and Weight
Weight : 410g
Size : 172mm (L) x 84mm (W) x 22mm (D)

Electrical Specifications:
Battery Cell : Rechargeable Lithium Polymer
Voltage Supported : 5V, 6V, 7.5V, 9V, 12V, 14V, 16V, 19V
Total Energy Capacity : 50 Wh
Output Current : Up to 4.5A
Charging Time : 4 hrs
Input Charging Voltage : 12 - 20VDC
Included Travel Charger Input Charging Voltage : 100 - 240VAC
Included Travel Charger Output Voltage/Output Current : 19VDC/3.16A
Adapter Tips : 8
USB Output Port : Built-in
Accessories : Output cord, Adapter pouch, Leather case, Output female car light adapter

Temperature Specifications:
Storage Temperature : -20 / 43°C (-4 / 110°F)

Operating Temperature Range:
Charge : 0 / 45°C (32 / 113°F)
Discharge : -20 / 60°C (-4 /140°F)

Capacities (mAh):
5V (10000), 6V (8300), 7.5V (6600), 9V (5500), 12V (4100), 14V (3500), 16V (3100), 19V (2600)

Capacity Indicator:
Red LED : 1-10%
Green LED #1 : 10-25%
Green LED #2 : 25-40%
Green LED #3 : 40-50%
Green LED #4 : 50-60%
Green LED #5 : 60-70%
Green LED #6 : 70-85%
Green LED #7 : 85-100%
